Influence of lateral recharge in mountainous areas on groundwater recharge and nitrate dynamics in the Hutuo River alluvial-pluvial fan
-
摘要: 山区侧向补给是华北山前平原冲洪积扇含水层重要补给来源, 影响平原区地下水水量和水质动态。近年来受极端气候和人类活动影响, 山区对冲洪积扇平原区地下水的侧向补给机制及其对地下水硝酸盐动态的影响仍不明确。本研究以滹沱河冲洪积扇为研究区, 利用水文观测、水化学和同位素示踪等方法, 估算山区侧向补给通量和硝酸盐输移通量, 揭示山区侧向补给与平原区地下水的补给关系, 分析山区侧向补给对地下水硝酸盐分布的影响。根据水文地质条件, 将采样点划分为4个子区: 滹沱河冲洪积扇北部扇顶(Ⅰ区)、扇中(Ⅱ区)、滹沱河附近扇缘区(Ⅲ区)以及滹沱河冲洪积扇南部区域(Ⅳ区)。地下水硝酸盐动态监测数据表明, 滹沱河北部的山区断面地下水硝酸盐浓度高于南部断面, 平原区北部Ⅰ区和Ⅱ区地下水硝酸盐浓度高于南部Ⅳ区; 且沿地下水流动方向, 地下水硝酸盐浓度均值呈现Ⅰ区(105.28 mg·L−1)>Ⅱ区(99.22 mg·L−1)>Ⅳ区(37.10 mg·L−1)>Ⅲ区(23.08 mg·L−1)的空间分布特征。利用地下水氢氧同位素示踪揭示了山区侧向流对冲洪积扇北部地下水补给影响范围为扇顶和扇中, 而冲洪积扇南部因地下水超采改变地下水流场, 其影响范围主要为扇顶。利用达西定律计算2022年3月至2023年2月山区侧向流对滹沱河冲洪积扇平原区的补给量为2.10×108 m3, 硝酸盐通量为239.56×105 kg, 且北部山区侧向补给的水氮通量大于南部, 这也是影响平原区地下水硝酸盐空间分布的重要原因。山区侧向补给对冲洪积扇平原区地下水量和水质的影响不容忽视, 因此, 实现源头综合治理, 降低山区地下水污染物浓度, 对下游平原区面源污染管理, 防止地下水硝酸盐污染具有重要意义。Abstract: Lateral recharge in mountainous areas is an important recharge source for the alluvial-pluvial fans in the Piedmont Plain of North China, which affects the dynamics of the quantity and quality of groundwater in plain areas. In recent years, the mechanism of lateral recharge in mountainous areas of groundwater in alluvial-pluvial fans and its influence on the dynamics of nitrate in groundwater in plain areas have remained unknown due to extreme climate and human activities. Through hydrological observation and hydrochemical and isotope tracer methods across the Hutuo River alluvial-pluvial fan, we estimated the lateral recharge flux and nitrate transport flux in mountainous areas, revealed the recharge relationship between lateral recharge in mountainous areas and groundwater in plain areas, and analyzed the influence of lateral recharge in mountainous areas on the distribution of groundwater nitrate in plain areas. The sampling sites were divided into four sub-regions according to their hydrogeological conditions: the northern top part (Zone Ⅰ) and the middle (Zone Ⅱ) of the Hutuo River alluvial-pluvial fan, the fan margin area near the Hutuo River (Zone Ⅲ), and the southern part of the Hutuo River alluvial-pluvial fan (Zone Ⅳ). The monitoring data of groundwater nitrate dynamics showed that the nitrate concentration of groundwater in the mountainous section of the northern Hutuo River was higher than that in the southern section, and the nitrate concentration of groundwater in Zones Ⅰ and Ⅱ of the northern alluvial-pluvial fan plain was higher than that in Zone Ⅳ. Along the direction of groundwater flow, the mean concentration of groundwater nitrate showed a spatial distribution pattern of Zone Ⅰ (105.28 mg·L−1) > Zone Ⅱ (99.22 mg·L−1) > Zone Ⅳ (37.10 mg·L−1) > Zone Ⅲ (23.08 mg·L−1). The results revealed that the influenced areas by lateral recharge in mountainous areas in the northern part of the alluvial fan were the top and middle of the fan. However, the influenced area in the southern part of the alluvial fan was mainly the top of the fan because the groundwater flow field was changed by overexploitation. Darcy’s law was used to calculate the amount of lateral recharge in the mountainous areas of the Hutuo River alluvial-pluvial fan from March 2022 to February 2023. The results showed that amount of lateral recharge was 2.10×108 m3, and the nitrate flux was 239.56×105 kg. Moreover, the water and nitrate fluxes of lateral recharge in the northern mountainous areas were greater than those in the south, which was also an important factor affecting the spatial distribution of groundwater nitrate in the plain area. The impact of lateral recharge in mountainous areas on the quantity and quality of groundwater in the alluvial-pluvial fan cannot be ignored. Therefore, it is of great significance to achieve comprehensive treatment of groundwater sources and reduce the concentration of groundwater pollutants in mountainous areas for non-point source pollution management and groundwater nitrate pollution prevention in the downstream plain area.
-

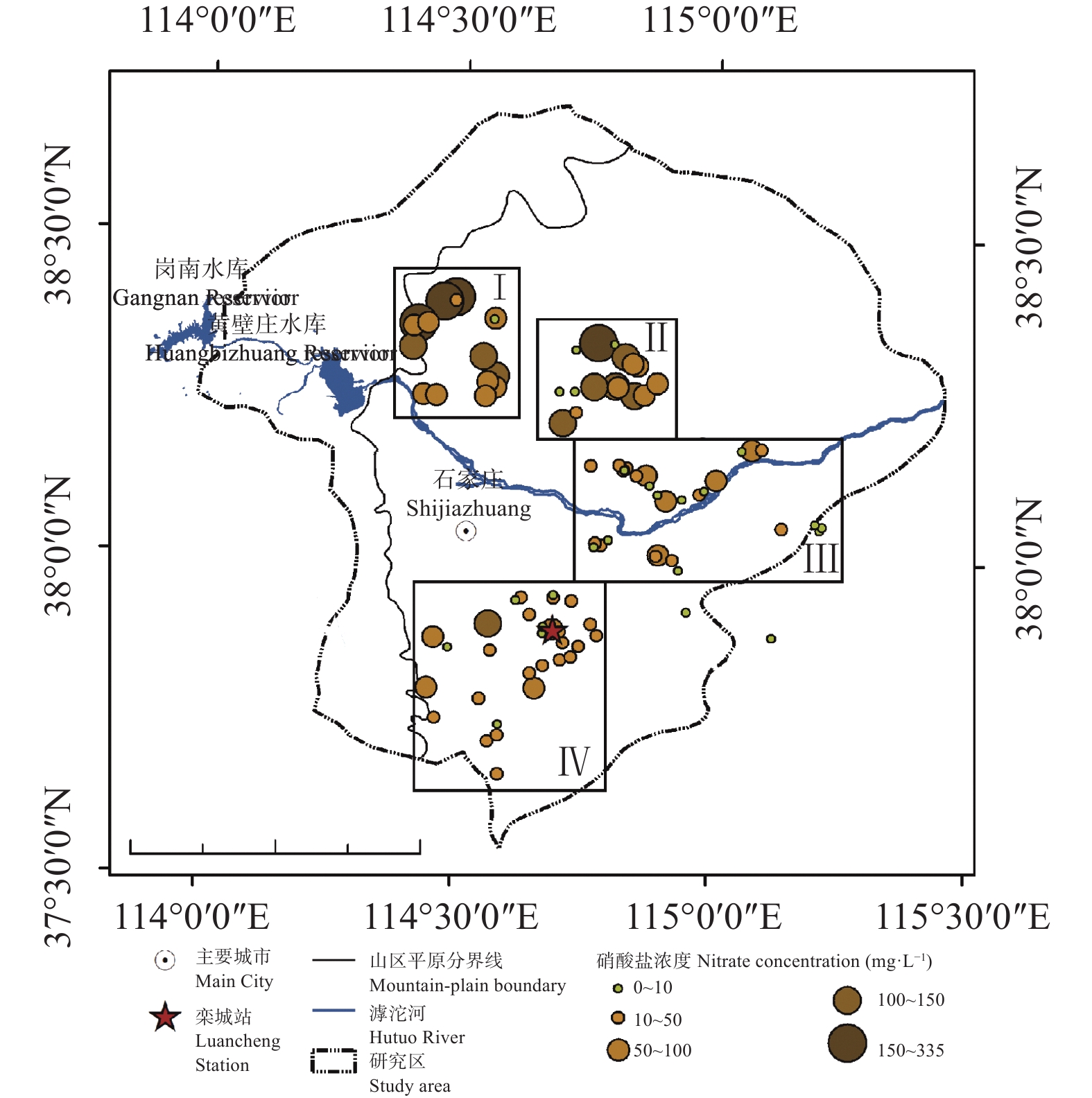

图 1 研究区地形地貌及采样点分布
Ⅰ、Ⅱ、Ⅲ、Ⅳ分别表示滹沱河冲洪积扇北部扇顶、扇中、滹沱河附近扇缘区以及滹沱河冲洪积扇南部区域。Ⅰ, Ⅱ, Ⅲ and Ⅳ represent the northern top, middle parts of the Hutuo River alluvial-pluvial fan, the fan margin area near the Hutuo River, and the southern part of the Hutuo River alluvial-pluvial fan, respectively.
Figure 1. Geographic location and topography and distribution of sampling sites of the study area

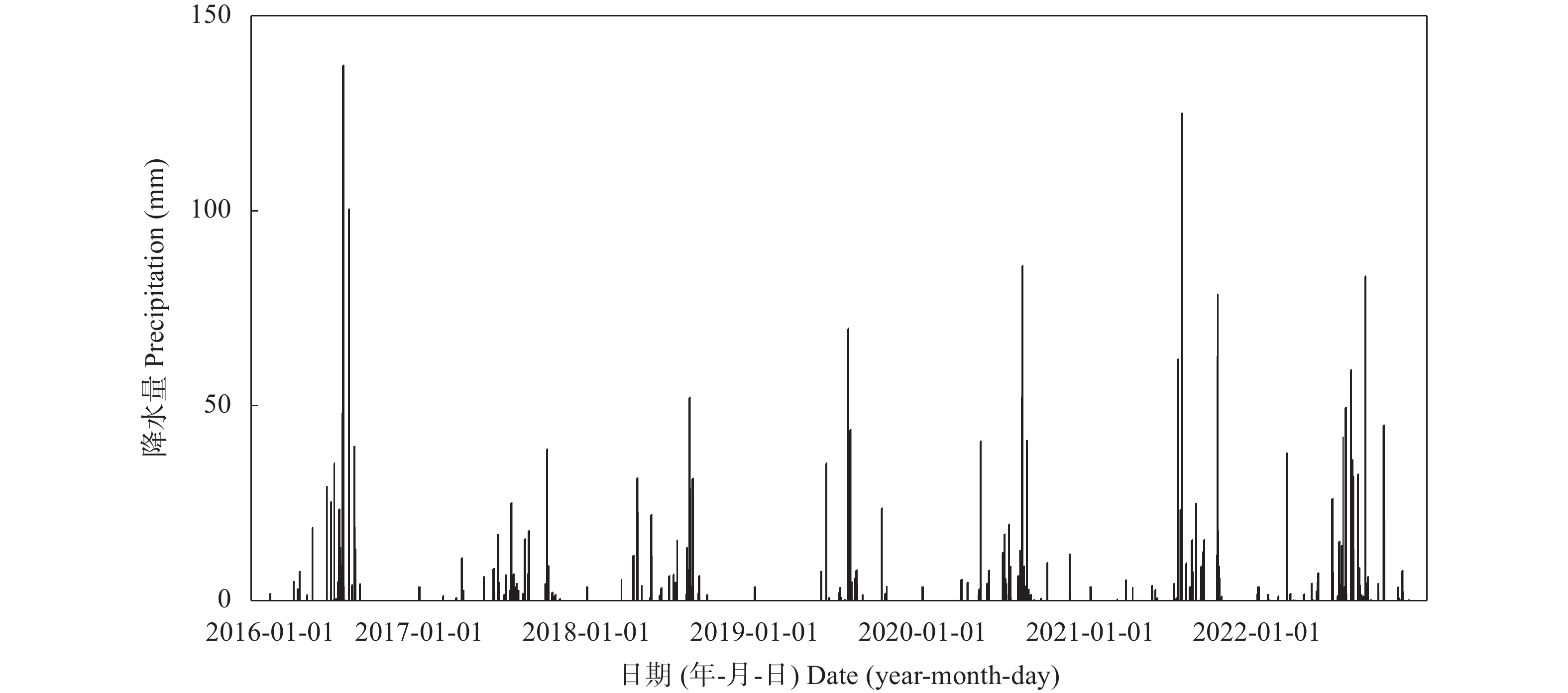

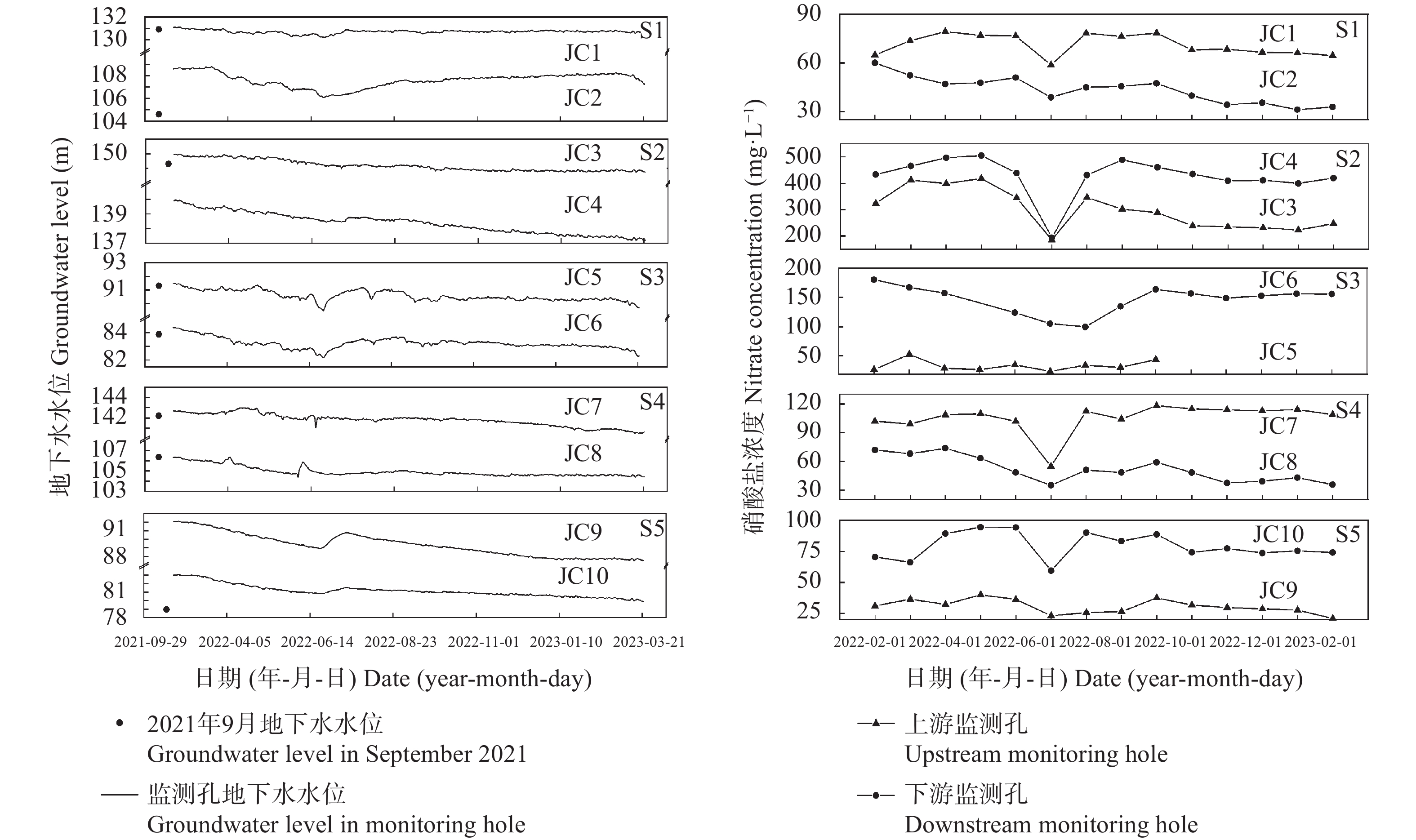

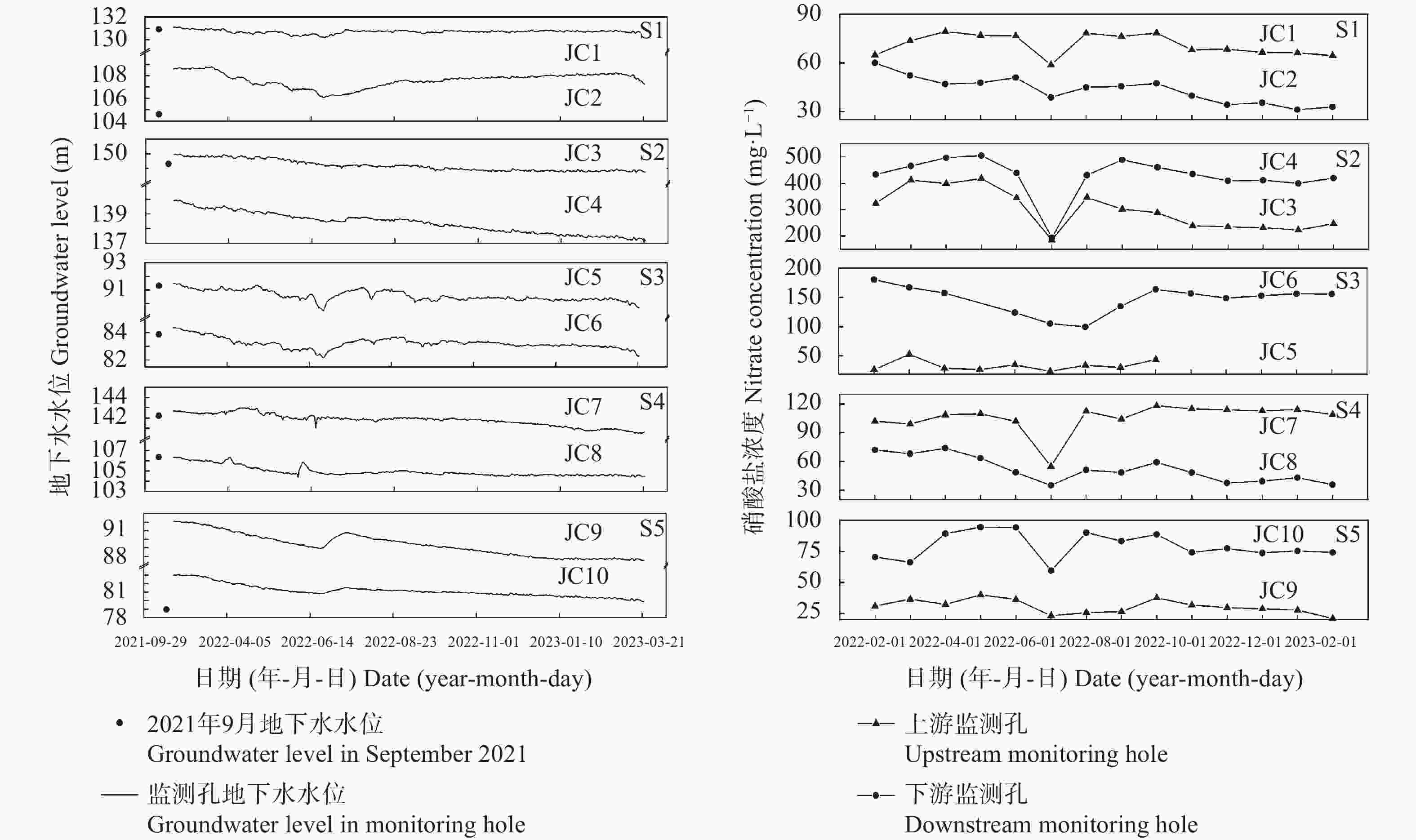

图 3 滹沱河冲洪积扇区断面监测孔地下水水位变化(左侧)及地下水硝酸盐浓度变化(右侧)
S1-S5分别代表断面1-5, JC1-JC10代表监测孔1-10。S1-S5 represent section 1-5, respectively; and JC1-JC10 represent monitoring hole 1-10, respectively.
Figure 3. Change of groundwater level (left) and nitrate concentration (right) in the monitoring holes at the sections of the Hutuo River alluvial-pluvial fan

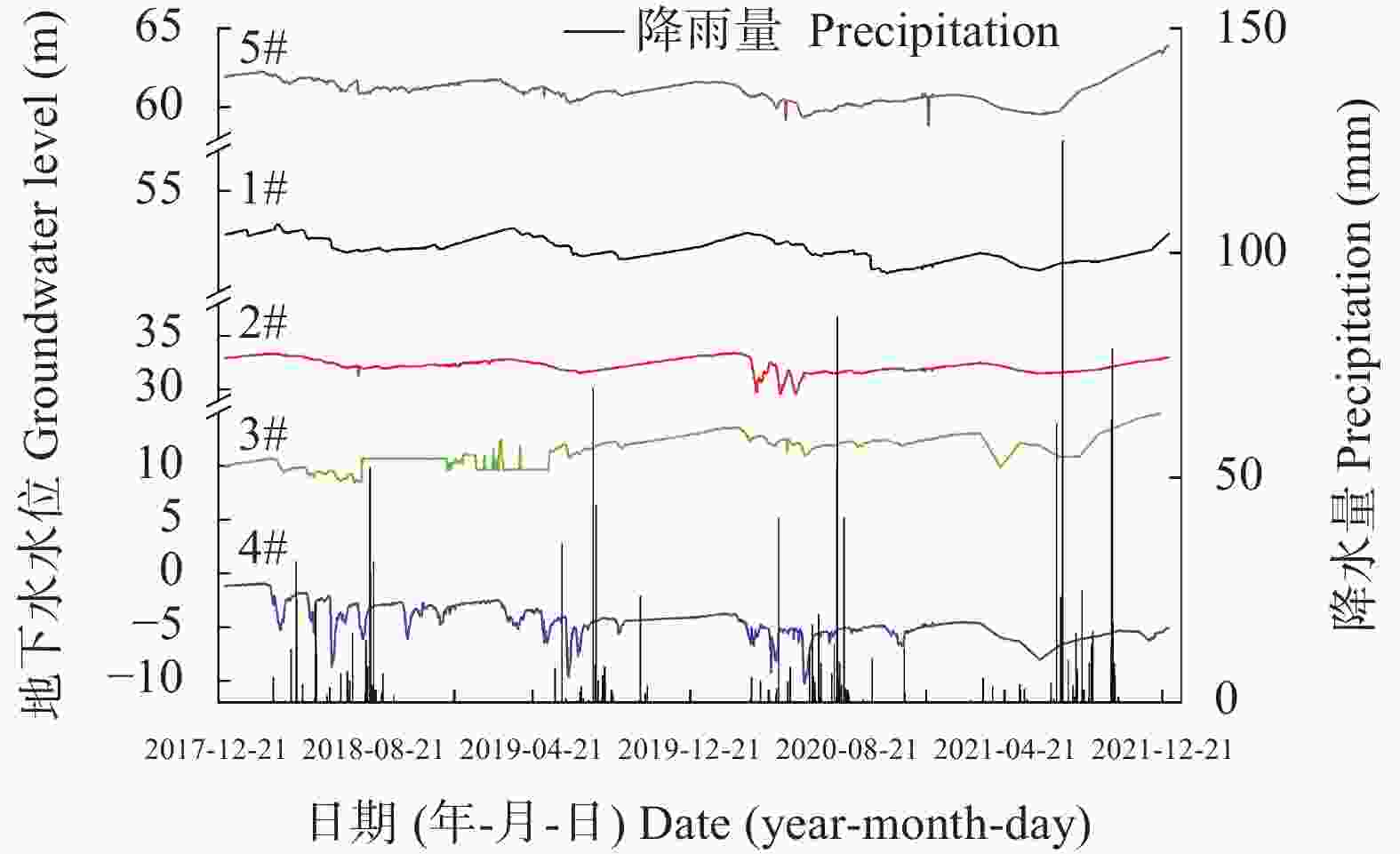

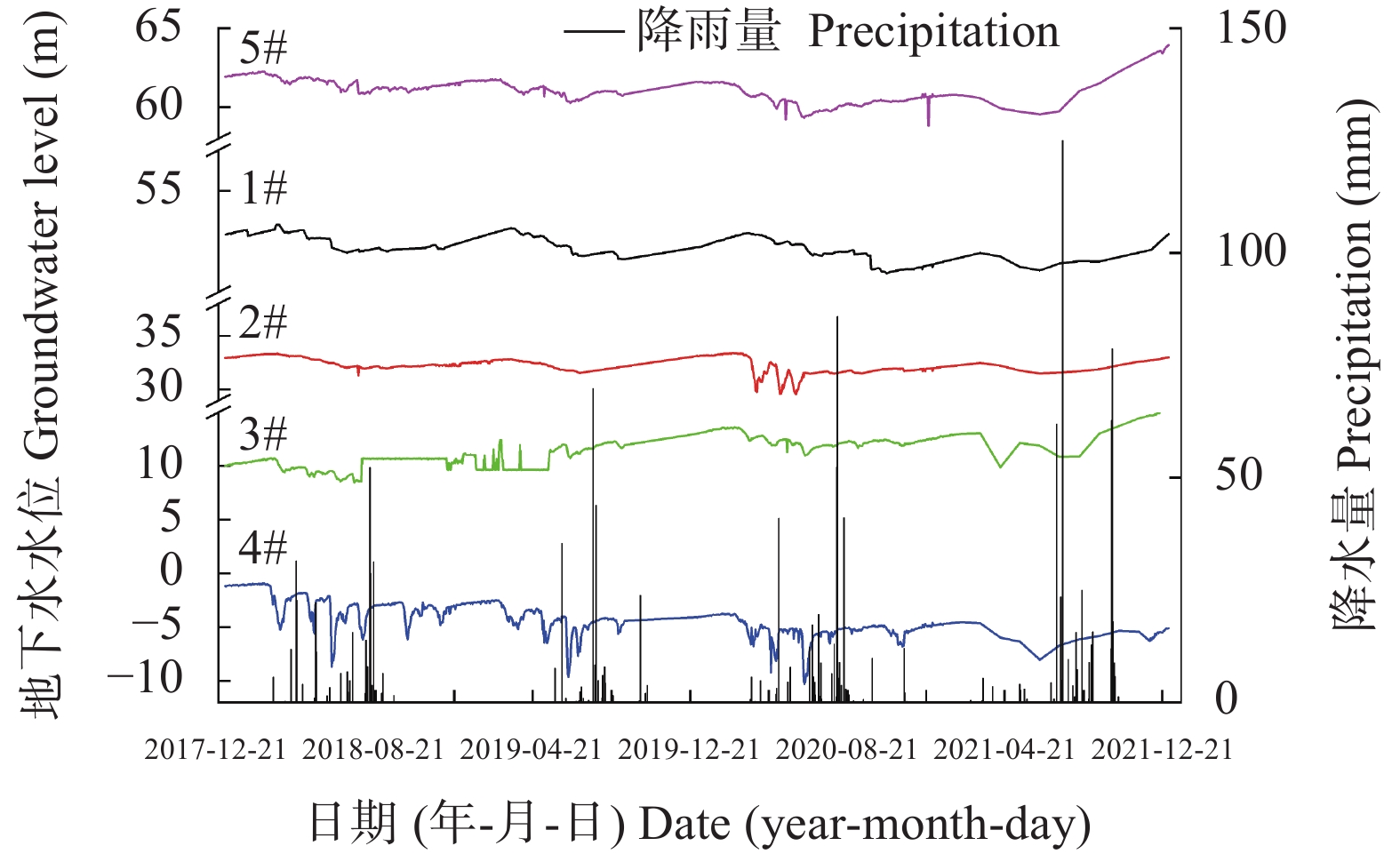

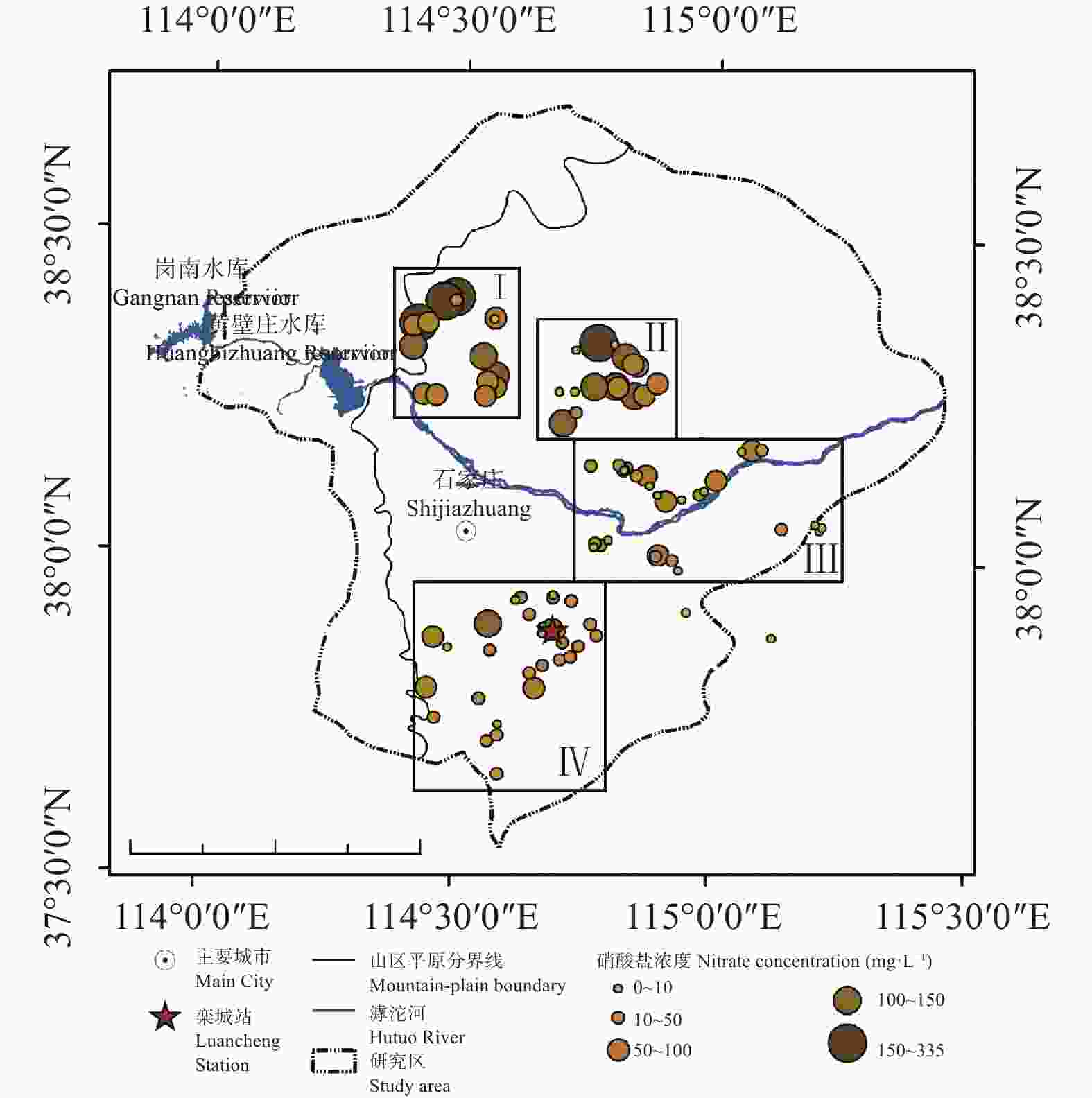

图 5 2020年滹沱河冲洪积扇平原区各分区地下水硝酸盐浓度空间分布
Ⅰ、Ⅱ、Ⅲ、Ⅳ分别表示滹沱河冲洪积扇北部扇顶、扇中、滹沱河附近扇缘区以及滹沱河冲洪积扇南部区域。Ⅰ, Ⅱ, Ⅲ and Ⅳ represent the northern top, middle parts of the alluvial-pluvial fan of the Hutuo River, the fan margin area near the Hutuo River, and the southern part of the alluvial-pluvial fan of the Hutuo River, respectively.
Figure 5. Spatial distribution of nitrate concentration in groundwater in the plain area of each subregion in the Hutuo River alluvial-pluvial fan in 2020

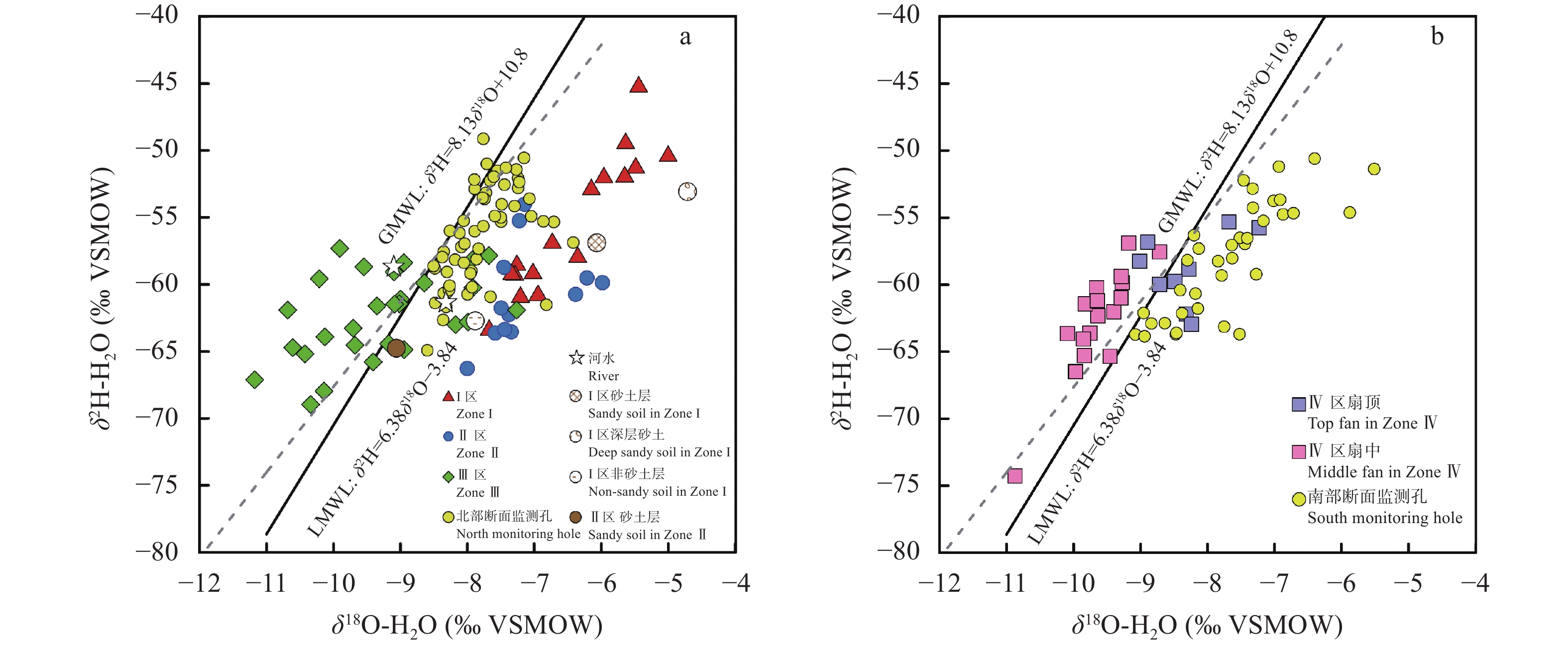

图 8 滹沱河冲洪积扇区断面监测孔地下水、各分区[北部Ⅰ~Ⅲ区(a), 南部Ⅳ区(b)]地下水及土壤水δ2H、δ18O关系图
采用栾城试验站降水同位素数据拟合当地大气降水线(LMWL: δ2H = 6.38 δ18O−3.84), 土壤水同位素为均值。VSMOW表示维也纳平均海洋水标准, GMWL表示全球大气降水线。The local meteoric water line (LMWL: δ2H = 6.38 δ18O−3.84) was fitted by the precipitation isotope data of Luancheng Station, and the soil water isotope was the mean value. VSMOW refers to Vienna Standard Mean Ocean Water, and GMWL refers to the global meteoric water line.
Figure 8. Relationships of δ2H and δ18O for groundwater in monitoring holes at sections, and groundwater and soil water in each subregion [northern I-Ⅲ (a), southern Ⅳ (b)] of the Hutuo River alluvial-pluvial fan

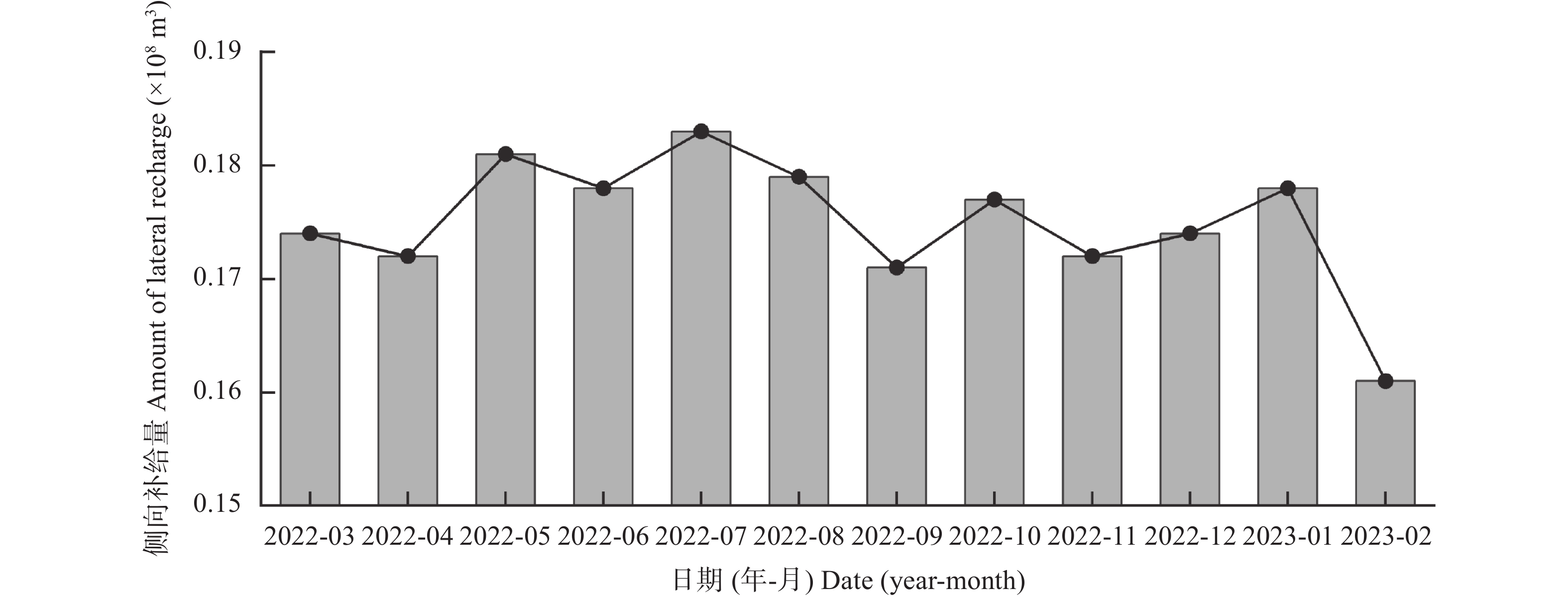

表 1 2022年3月—2023年2月滹沱河冲洪积扇区山区侧向补给对平原区地下水的补给量
Table 1. Lateral recharge in the mountainous areas of the Hutuo River alluvial-pluvial fan from March 2022 to February 2023
×108 m3 断面
Section侧向补给量 Amount of lateral recharge 2022 2023 总计
Total3月
March4月
April5月
May6月
June7月
July8月
August9月
September10月
October11月
November12月
December1月
January2月

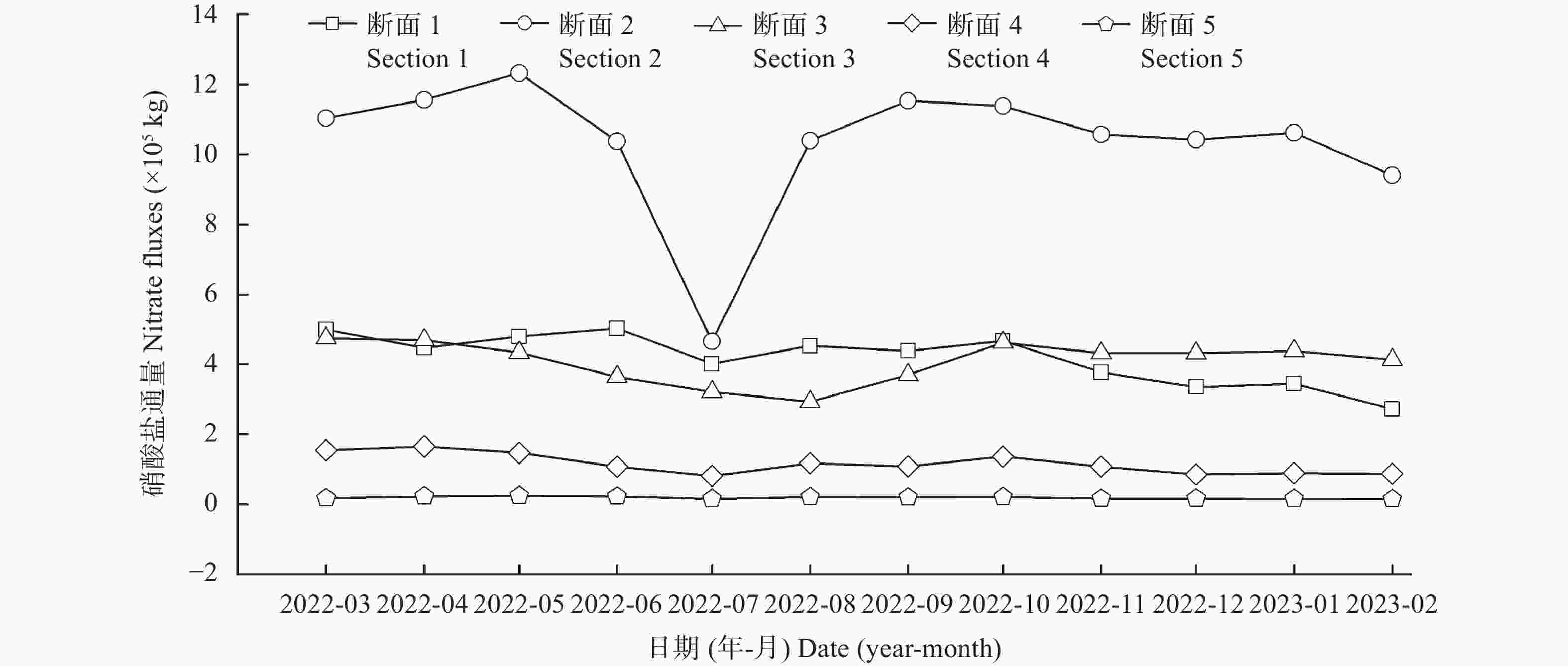

February1 0.096 0.095 0.100 0.099 0.104 0.101 0.096 0.099 0.095 0.098 0.097 0.087 1.167 2 0.024 0.023 0.024 0.024 0.024 0.024 0.024 0.025 0.024 0.025 0.026 0.023 0.290 3 0.028 0.030 0.031 0.029 0.031 0.029 0.027 0.028 0.028 0.029 0.029 0.026 0.346 4 0.023 0.022 0.023 0.023 0.022 0.023 0.022 0.023 0.023 0.020 0.023 0.022 0.271 5 0.003 0.002 0.003 0.003 0.002 0.002 0.002 0.002 0.002 0.002 0.003 0.003 0.029 总计 Total 0.174 0.172 0.181 0.178 0.183 0.179 0.171 0.177 0.172 0.174 0.178 0.161 2.103 表 2 2022年3月—2023年2月滹沱河冲洪积扇区山区输入硝酸盐通量

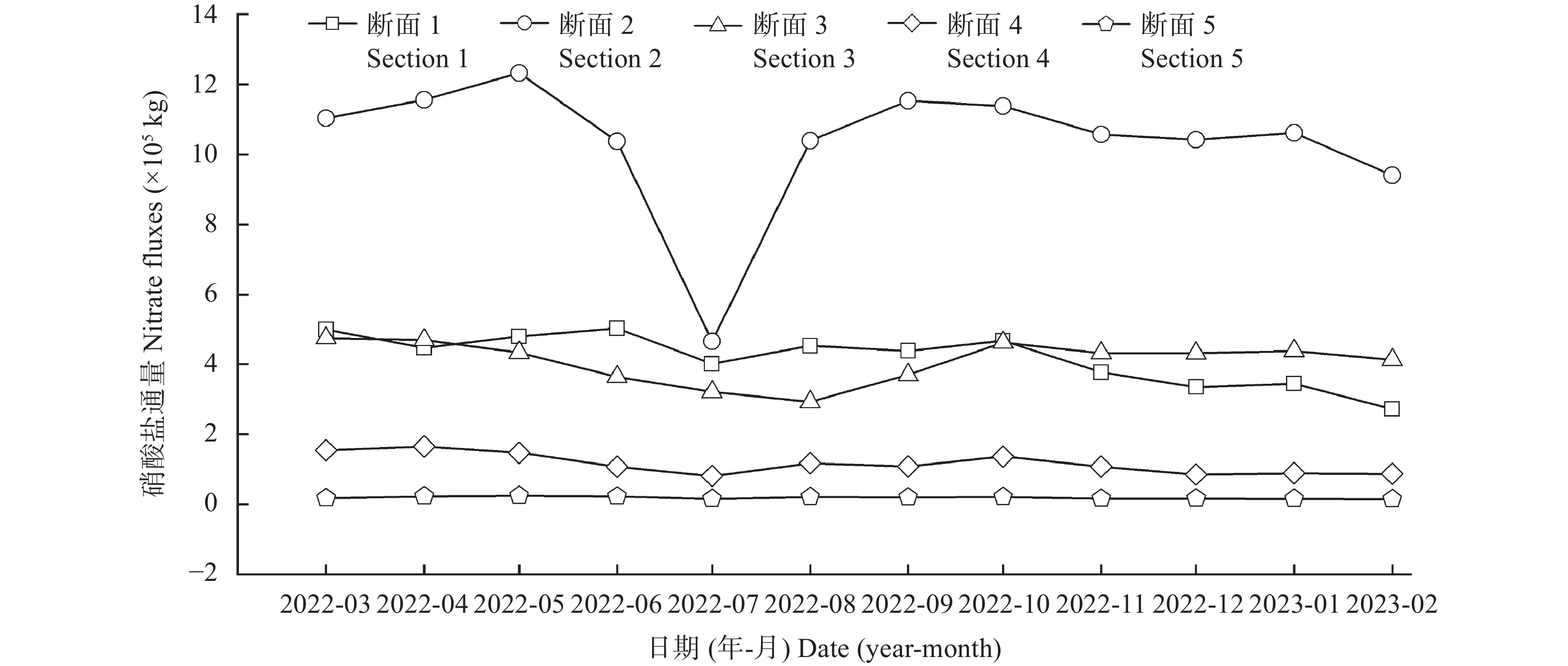

Table 2. Nitrate fluxes from lateral recharge in mountainous areas of the Hutuo River alluvial-pluvial fan from March 2022 to February 2023
×105 kg 断面
Section硝酸盐通量 Nitrate flux 2022 2023 总计
Total3月
March4月
April5月
May6月
June7月
July8月
August9月
September10月
October11月
November12月
December1月
January2月
February1 4.99 4.47 4.79 5.03 4.01 4.53 4.38 4.67 3.77 3.34 3.44 2.72 50.13 2 11.03 11.55 12.32 10.37 4.65 10.39 11.53 11.38 10.57 10.42 10.61 9.40 124.23 3 4.74 4.69 4.33 3.64 3.21 2.93 3.70 4.62 4.32 4.31 4.38 4.12 48.98 4 1.55 1.65 1.47 1.08 0.81 1.17 1.08 1.37 1.08 0.86 0.89 0.88 13.88 5 0.18 0.23 0.25 0.23 0.16 0.21 0.20 0.21 0.17 0.17 0.16 0.15 2.33 总计 Total 22.48 22.59 23.16 20.35 12.84 19.23 20.89 22.24 19.90 19.10 19.49 17.27 239.56 -
